  • LUXMAN L-507uX Integrated Amplifier

    Product Description

    L-507uX Integrated Amplifier

    »

    Luxman is pleased to announce the L-507uX this merger of transistor amplifier, the 4th version of the highly rated X series, with a high output power of 110W(8Ω) 220W(4Ω). The L-507uX integrated amplifier introduces Luxman electronically control attenuator LECUA, with an illuminated central oriented VU meter on its solid, symmetrical facia, also includes the Luxman exclusive super sound quality feedback circuit ODNF high S/N version 3.0,while keeping all the superb features of Luxman products made in Japan.

    The first L-507-s introduced in 1996, since 16 years, has experienced three times the model after the change, L-507uX as Luxman's new model, with great sales by many users support, belonging to L-500 series full of the latest change model.

    SPECIFICATIONS
    Item Value
    Continuous Outputs 110W+110W/8Ω, 210W+210W/4Ω

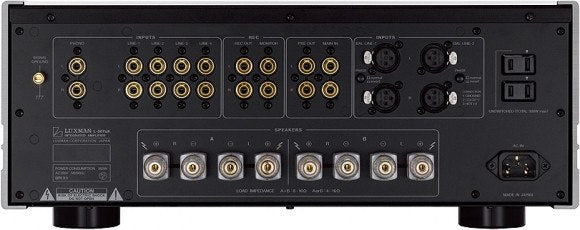

    Input Line x 4, phono x 1(MM/MC ) balance: line x 2,
    recording input/output x 1, separate inputs x 1
    Loudspeaker Output A,B System (A+B output)
    Amplifying Circuit Output ODNF3.0
    Input Sensitivity / Impedance Phono (MM): 2.5mV / 47k , PHONO (MC):
    0.3Mv / 100 , LINE: 180mV / 47kΩ
    MAIN-IN: 1.05V/47KΩ
    Harmonic Distortion 0.005% or less (1KHz/8Ω)
    0.04% or less(20Hz ~ 20KHz/8Ω)
    Frequency response 20Hz ~ 100KHz(+0, -3.0dB)
    Signal-to-Noise PHONO(MM): 91db, PHONO(MC): 75db, LINE: 105dB
    Power Consumption 300W(rated output), 86W(no signal), 0.4W(idle)
    Dimensions (W x H x D) 440 ×177 ×454 (mm)
    Net Weight 23.9Kg

    All eligible company warranty and service support is being provided on LUXMAN L-507uX Integrated Amplifier
