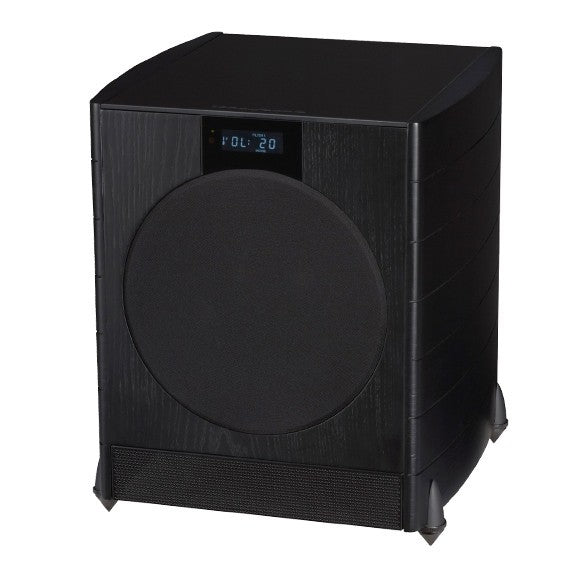

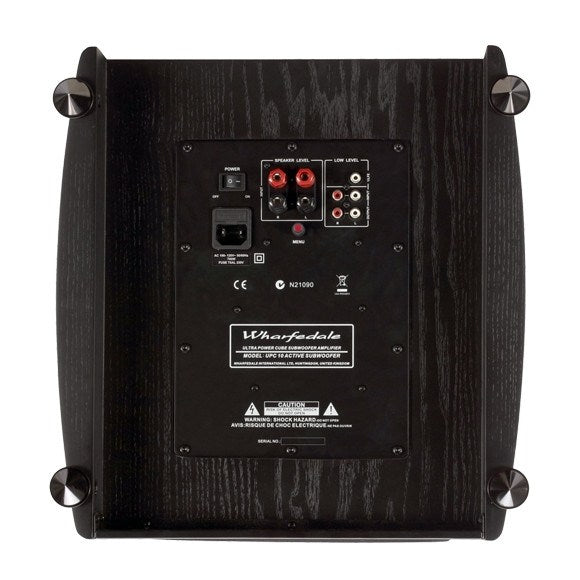

Wharfedale‚¬„s UPC Series is a complete subwoofer solution for a variety of system. The built-in power amplifier as used in every model is capable of producing extended subsonic with complete precision and clarity. The push x 2 design philosophy is unique in the subwoofer range. A continuously variable crossover range adjustment provides seamless integration with the other speakers in the system, while a variable phase adjustment facilitates perfect subwoofer/room interface. These functions can be accomplished by activating a menu switch on the back panel or via remote operation. One bass unit is front firing, the other is rear firing. They are in phase and push together. The advantage of these two drivers is: a) a larger cone area for a minimal enclosure size; b) force cancellation

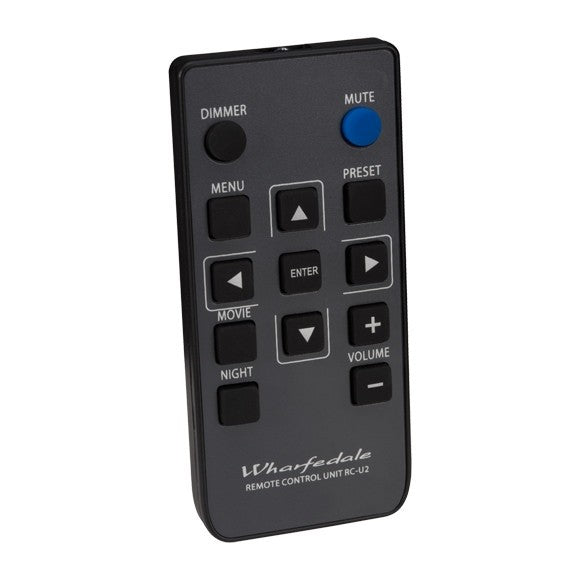

In addition there is an LCD display which allows more user friendly selection in combination with the remote control. It also contains the all new movie and night mode, which can be selected remotely. We hope they give you much pleasure. The UPC Series offers three subwoofers in a variety of sizes - UPC6, UPC8 and UPC10. All the three showcase the same design configuration.A handy, fully functional remote control for easy use and convenience is supplied as an accessory.

* Line level high pass output

* Variable low pass crossover slope adjustment

* Variable phase adjustment

* User-selectable sound effect modes

* Comprehensive display screen to facilitate operation

* Fully functional remote control for all modes

Description/Format	Active Subwoofer System
Driver Units	2 x 250mm (10'') Cone Long-throw
Frequency Response (+/-3dB)	30 - 120Hz
Amplifier Power Output	500W
Line Input Sensitivity	250mv for 350W
Crossover Range	30 - 150Hz
Inputs	Stereo Line In (2 x RCA Pjono): Mono (LFE) Line In (RCA Phono); Stereo Speaker Level In
Input Impedance	10kOhms
Signal-to-noise Ratio (S/N)	°¥90dB
Avg. Max Output @ 1m	118dB
Features	Phase Inversion, Auto on/off, Low-Pass filter slope adjustment, Sound effect modes
Dimensions (H x W x D)	435 x 365 x 390 (mm)
