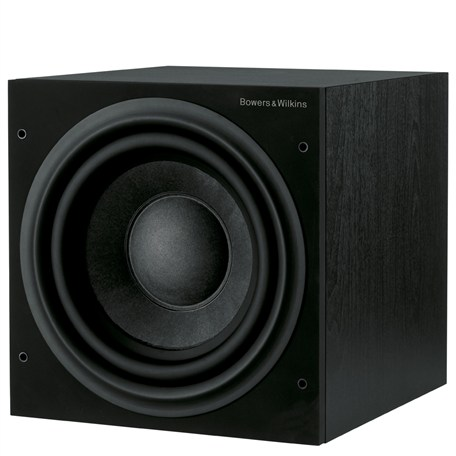

B & W ASW 610 Powered Subwoofer 200 W
B&W ASW 610 Powered Subwoofer 200 W
PRODUCT DESCRIPTION
The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.
In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.SPECIFICATION
Crossover Tuning
Yes Mushrooms
Yes Description
Active closed-box subwoofer system
Drive unit
ø250mm (10 in) paper/Kevlar® cone long-throw
Frequency range
-6dB at 20Hz and 25/140Hz adjustable (EQ at A)
Frequency response
±3dB 27Hz – 40/140Hz adjustable (EQ at A)
Bass Extension
-6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)Power output:
200W
Rated power consumption:
40W / 0.5W standby
Input impedance:
33kΩ
Signal / noise:
>90dB
Functions:
Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on/standby
Phase switchInputs:
Line In (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequencyDimensions
Height: 310mm (12.2 in) not including feet
Width: 310mm (12.2 in)
Depth: 375mm (14.8 in) including grille and controlsNet weight
12.5kg (27.6 lb)
Finishes
Matte Black
All eligible company warranty and service support is being provided on B & W ASW610 Powered Subwoofer.
