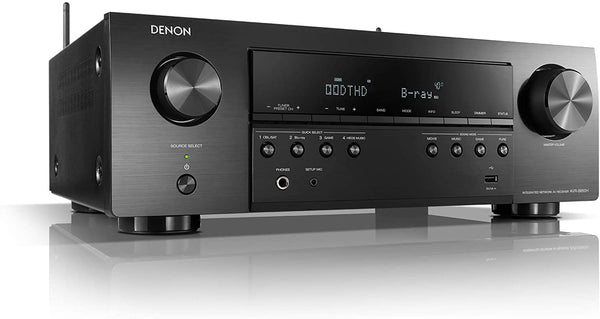

Denon AVR-S650H 5.2ch AV Receiver with Online Music Streaming & Voice Control
Denon AVR-S650H 5.2 channel AV receiver with 150W per channel (6 ohms, 1 kHz, THD 10%, 1ch driven), 4K Ultra HD HDMI (5 inputs / 1 output), Dolby True HD, DTS-HD Master Audio, Dolby Vision™, Bluetooth® and HEOS wireless multi-room music streaming, and voice control compatibility.
TECHNICAL SPECIFICATIONS
Multichannel Surround
DTS HD Master / DTS:X Yes / No Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / No / No Multichannel Stereo Yes Max Number of Processing (Preamp) Channels 5.1 Sound Enhancements
Discrete Power Amplifier Yes Audyssey MultEQ Audyssey Dynamic EQ / Dynamic Volume Yes / Yes Compressed Audio Restorer Yes Network
Media Server Yes HEOS Wireless Multi-Room Technology Yes Bluetooth Re-transmit for Bluetooth headphones Yes (update) Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes DSD Audio Streaming Yes (2.8/5.6MHz) FLAC HD 192/24 Yes WAV 192/24 Yes ALAC 192/24 Yes Gapless playback Yes (FLAC, WAV ,ALAC ,DSD) AirPlay / Airplay2 Audio Streaming Yes / Yes Internet Radio Yes (TuneIn) Spotify* Yes (connect) Pandora Yes SiriusXM* Yes Other Streaming Services * Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix HEOS App Control Yes Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle Ethernet Ports Yes Wi-Fi Yes Bluetooth Yes HDMI
HDMI Inputs: Back / Front 5 / No HDCP 2.2 support Yes (HDCP 2.3) HDMI Outputs: Main / Zone 1 / No GUI Overlay on HDMI Yes HDMI: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No Enhanced ARC Yes HDR / HLG / Dolby Vision Yes (HDR10) / Yes / Yes ALLM (Auto Low Latency Mode) Pass-through for gaming Yes 3D Signal Pass-through Yes 4K Signal Pass-through / Scaling / GUI Overlay Yes / No / Yes HDMI Pass-Through in Standby Mode Yes CEC Yes Audio Return Channel Yes Auto LipSync Yes Multi-room CI
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes HDMI Diagnostics Yes Others
Auto Speaker Setup by Microphone Audyssey MultEQ FL Display 1 line Graphic User Interface - GUI Hybrid GUI GUI Languages 3 Setup Assistant Yes Quick Select Plus / Quick Select Yes / No Firmware Update by: Network / USB Yes / Yes Variable Cross Over Yes Optimized Bass Redirection Yes ECO Mode Yes Auto Power Off Yes Sleep Timer Yes Inputs Outputs

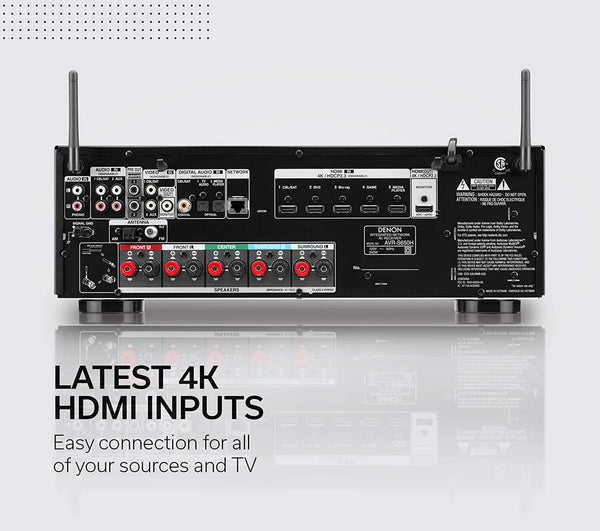

Composite In / Out 2 / 1 HDMI In / Out 5 / 1 Analog In/out 2 / No Phono (MM) In Yes Digital In: Optical / Coaxial 2 / 1 Multichannel Preout Yes (0.2) / No Subwoofer Out 2 Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes Number of Speaker Terminals 5 Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes USB Audio / Made for iPod / Made for iPhone Yes / No / No AM/FM Tuner Yes Specifications
Number of Power Amps 5 Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 75 W Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 100 W Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 150 W General
System Remote Control RC-1226 Power Consumption in W 340 Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W Standby Consumption in W 0.1 CEC Standby Consumption in W 0.5 Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches

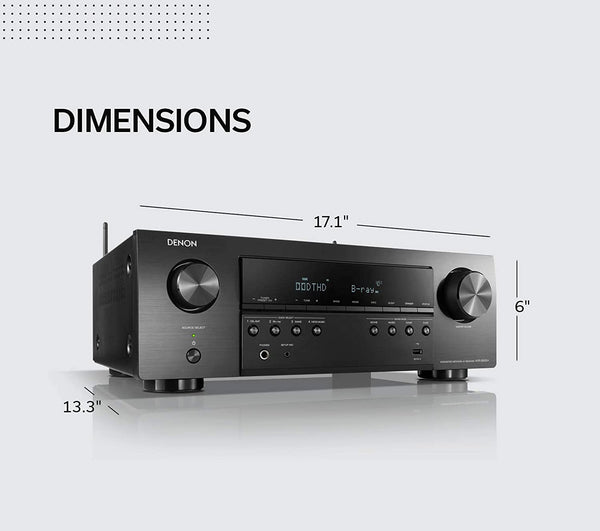

W/O Antenna: (W x D x H) in Inches17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)Carton Dimensions (Packaging) (W x D x H) in Inches) 20.6 x 17.1 x 9.1 (in) Weight in LBS 17.2 Weight in LBS (Packaging) 21.4 Power Supply AC 120 V, 60 Hz Speaker impedance 4 - 16Ω/ohms Input sensitivity 200 mV Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode) S/N Ratio 98 dB (IHF-A weighted, Direct mode) FM section (Tuning frequency range) 87.5 - 107.9 MHz AM section (Tuning frequency range) 520 kHz – 1710 kHz
