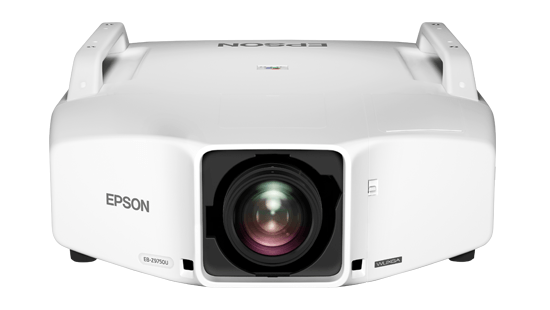

Epson Business Projector EB-Z-9870NL
Product Description
Product Descriptions:
Epson Business Projector EB-Z-9870NL allows you to discover a powerful way to impress your audience ‚¬œ the EB-Z9870 high brightness business projector gives you stunning, high-definition images with its 3LCD technology.
Specifications:
»
MODEL NUMBER Espon Business Projector EB-Z-9870NL Projection Technology RGB liquid crystal shutter projection system (3LCD) Specifications of Main Parts LCD: Size
1.06‚¬? wide panel with MLA (D8, C2 Fine) Native Resolution
XGA (1024 x 768) Projection Lens: Type
Power Zoom / Power Focus / Power Shift F-Number
1.65 - 2.51 Focal Length
36.00 - 57.35 mm Zoom Ratio
1 - 1.61 Throw Ratio
1.63 - 2.65 (Wide - Tele) Lens Exchange
Yes (7 Optional Lenses) Lens Shift: Mode
Powered Vertical (Up/Down)
±56% (H Center) (Manual) Horizontal (Left/Right)
±19% (V Center) (Manual) Type Standard Lamp
380W UHE x 2 Portrait Lamp
304W UHE x 2 Life (Normal / Eco)*1 Standard Lamp
3,000 hours / 4,000 hours Portrait Lamp
1,000 hours Screen Size (Projected Distance) Zoom: Wide 60‚¬? - 500‚¬? [1.94 - 16.76 m] Zoom: Tele 60‚¬? - 500‚¬? [3.19 - 27.16 m] Standard size 100‚¬? screen 3.29 - 5.37 m Brightness*2 (2 Lamp Mode) White Light Output (Normal/Eco) 8,700lm / 7,300lm Colour Light Output 8,700lm Portrait Mode 8,500lm Brightness*2 (1 Lamp Mode) White Light Output (Normal / Eco) 4,350lm / 3,650lm Colour Light Output 4,350lm/td> Portrait Mode 4,250lm Contrast Ratio 15,000:1 Geometric Correction Keystone Correction Vertical / Horizontal
±30° / ±30° (Zoom: Tele) (with Standard Zoom Lens) Quick Corner
Yes Curved Surface
Yes Point Correction
Yes Corner Wall
Yes Connectivity Analog Input D-Sub 15 pin
1 (Blue) 5BNC
1 Component
5BNC, D-Sub 15pin x 1 (Blue) (common with Analog RGB connector) Composite
1-BNC S-Video
1 Mini DIN Digital Input HDMI
1 (HDCP Supported) DVI-D
1 HDBASE-T (RX)
1 (RJ45) Output Terminal D-Sub 15 pin
1 (Black) Others USB TYPE A
1 (For ELPAP07 Wireless Adapter Only) USB TYPE B
1 Mini USB (For Service Only) Control I/O RS-232C
D-sub 9pin x 1 Network Remote Control Input
Stereo Mini-jack x 1 Wired Lan
RJ45 x 1 (100Mbps) Wireless
Optional (ELPAP07) Wireless Specifications Supported Speed For Each Mode IEEE 802.11b: 11Mbps*3, IEEE 802.11g: 54Mbps*3, IEEE 802.11n: 130Mbps*3 Wireless LAN Security WPA-PSK (TKIP/AES) / WPA2-PSK (TKIP/AES) Operating Temperature 0 - 50 °C <32 -122 °F> ( 20% - 80% humidity, unfrozen )
Thermal Shut Down > Normal1 50°C (122°F), ECO & Normal2 55°C (131°F)Operating Altitude 0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft: with high altitude mode) Direct Power On / Off Yes Start-Up Period About 20 seconds, Warm-up Period: 30 seconds Cool Down Period Instant Off or 0 second Air Filter Type High Efficiency Filter Maintenance Cycle 10,000 hours *4 Power Supply Voltage 100 - 240 V AC +/- 10%, 50/60 Hz Power Consumption (220 - 240V) Lamp On (Normal / Eco) 809W / 721W Standyby (Network On / Off) 2.9W / 0.37W Dimension Excluding Feet (D X W X H) 741 x 534 x 197 mm (not including foot and projection lens) Weight 25kg Fan Noise (Normal / Eco) 37dB / 35dB Connections
All eligible company warranty and service support is being provided on Epson Business Projector EB-Z-9870NL
