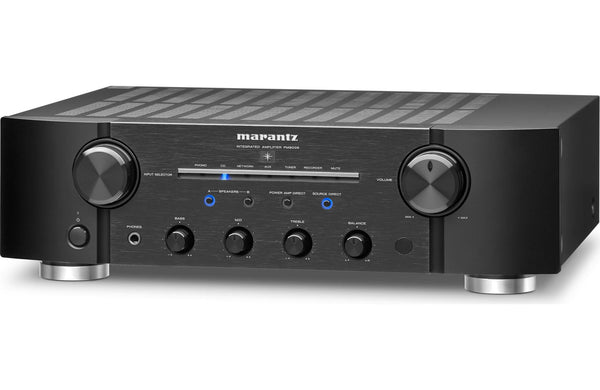

Marantz PM-8005 Integrated Amplifier

Marantz PM8005

Product Descriptions:

Combining fully discrete current feedback circuitry and our exclusive HDAM technology, the Marantz PM8005 integrated stereo amplifier delivers audiophile grade sound quality along with system operational flexibility. Rated at 70 watts per channel into 8 ohms, the PM8005 features a robust power supply along with high current capability to deliver 100 watts per channel into 4 ohms, for compatibility and operational stability with the widest range of loudspeakers.

The versatile pre-amp section features 6 line level inputs including a phono (MM) input, and the PM8005 also includes pre-amp outputs along with a power amp direct input, which lets you use the unit as a standalone power amplifier for integration into a multi-channel home theater system. For precise sound tailoring, the PM8005 features our triple tone control system, with separate controls for the bass, midrange and treble segments. The elegant remote control features an ergonomic layout for easy operation, and includes the ability to control our companion SA8005 disc player and one of our network players.

Specifications:

• 70 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.02% THD
• 100 watts x 2 channels into 4 ohms (20-20,000 Hz)
• 4-ohm capability allows use with a wide range of speakers
• high-current double-shielded toroidal power transformer for clean playback and smooth handling of demanding speaker loads
• Hyper Dynamic Amplifier Module and current feedback amplification for accuracy and control under high-drive conditions
• front-panel tone controls (treble, mid, bass)
• Source Direct mode bypasses tone control circuits for cleaner sound
• 6 stereo RCA audio inputs (including MM phono input)
• stereo Power Amp Direct inputs for use as a power amp with a home theater receiver
• stereo preamp outputs for connection to a separate power amplifier
• stereo RCA audio outputs for recording
• built-in headphone amplifier with full-size (1/4-inch) jack
• connections and front-panel switching for two pairs of speakers
• frequency response 5-100,000 Hz (±3dB)
• signal-to-noise ratio: 106 dB (line in), 87 dB (phono), 125 dB (Direct in)
• remote control
• detachable power cord
• 17-3/8"W x 5-1/8"H x 15-3/4"D
• weight: 26.5 lbs.

Marantz PM8005

All eligible company warranty and service support is being provided on Marantz PM-8005 Integrated Amplifier
