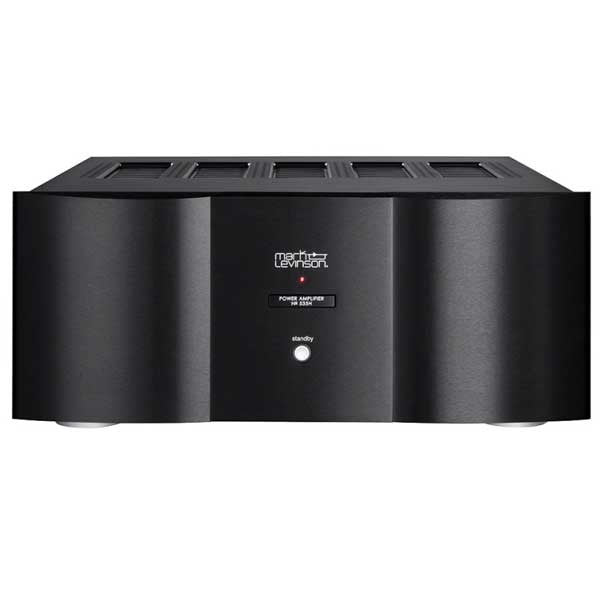

Mark Levinson 535H Five Channel Amplifier (200 Watts x 5)
Product Description
Product Details:
Five Channel Amplifier (200 Watts x 5)
‚¬ Balanced design with XLR and RCA inputs
‚¬ System controls: Ethernet, proprietary ML net, 12V trigger
‚¬ Black aluminum finish
‚¬ Dimensions (H x W x D): 7.7" x 17.8" x 19.8"
(19.6 cm x 45.2 cm x 50.3 cm)
‚¬ Weight: 98.5 lb (44.7 kg) / Shipping weight: 116 lb (52.5 kg)Specifications:
COMMUNICATION AND CONTROL

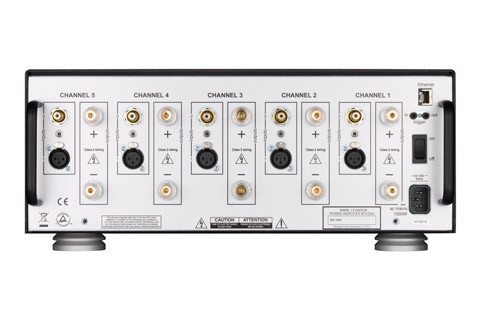

one Ethernet 10Base-T port; one 3.5mm mono (tip/sleeve) mini plug trigger input, 3-12Vdc; one 3.5mm mono (tip/sleeve) mini plug trigger output, 3-12Vdc; 3-pin IEC standard power connector
FREQUENCY RESPONSE
within 0.5dB from 10Hz to 20kHz
INPUTS
Five balanced XLR inputs; five unbalanced RCA inputs
INPUT IMPEDANCE
60 kΩ (balanced); 30 kΩ (unbalanced)
INPUT SENSITIVITY
2.83Vrms output at 130mVrms input
RATED OUTPUT POWER INTO 8 OHMS
200W/ch (20Hz to 20kHz at
SIGNAL-TO-NOISE RATIO
>85dB, reference level: 2.83 Vrms
GAIN
26.8dB
POWER REQUIREMENTS
100V~, 120V~, 230V~, factory set for destination country
SPEAKER CONNECTIONS
five pairs loudspeaker outputs with banana-plug sockets (banana-plug socket not available on the 230 VAC models)
WEIGHT
Net weight: 98.5 lbs (44.7kg); Shipping weight: 108.5 lbs (49.2kg)
DEPTH
19.83" (50.4cm)
WIDTH
17.75" (45.1cm)
HEIGHT
(with feet): 7.65" (19.4cm); (without feet): 6.97" (17.7cm)
All eligible company warranty and service support is being provided on Mark Levinson 535H Five Channel Amplifier (200 Watts x 5)
