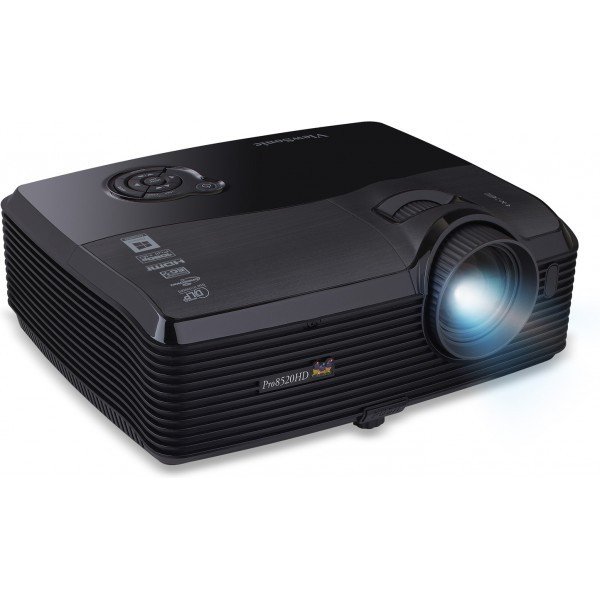

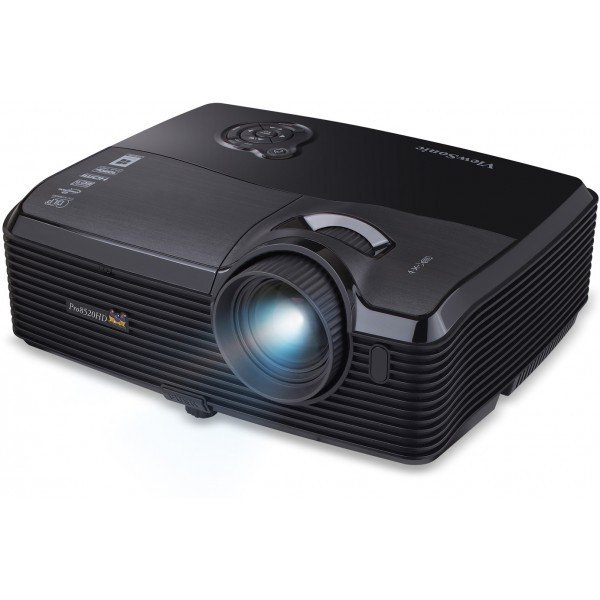

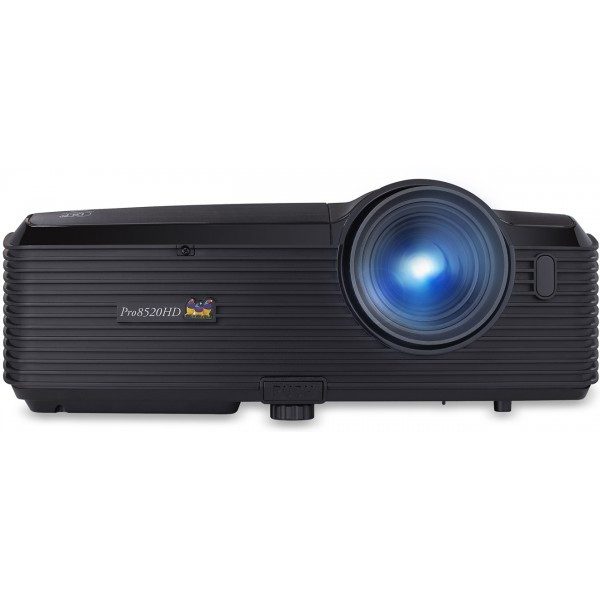

ViewSonic Pro8520 Full HD Projector
Product Description:
ViewSonic's industry leading projector, the Pro8520HD, is a Full HD 1080p model that delivers superior and stunning HD image quality onto 30~300‚¬? screen. With 5,000 lumens, the Pro8520HD ensures every pixel will stay crystal clear on the large venue even with the wide range of brightness settings. The Pro8520HD supports a Crestron RoomView® network management system that efficiently controls and manages all the projectors in the system from a central terminal. Through a RJ45 connection, the Pro8520HD can simultaneously display inputs from 4 different computer screens, provided all devices are connected to the same intranet. This facilitates the development of synergy among the participants. For a PC less presentation, it can also be operated by just plugging in an USB flash to enjoy the content immediately. With 1.5x optical zoom, it enlarges the screen image and fit in anywhere. The versatile interfaces, such as HDMI, RGB, S-video, component inputs and integrated speakers and microphone, allow the Pro8520HD to be used as an audiovisual stereo, making it the optimal solution for projection in large lecture rooms, conference rooms, and public demo rooms.
Specifications:
Display Type 0.65" Digital Micromirror Device (DLP) Resolution 1920x1080 Lens 1.5x manual optical zoom / manual optical focus Size 30 - 300 inch Throw Distance 0.9m - 10.0m Lamp 350 watt Brightness 5000 ANSI Lumens Contrast Ratio 8,000:1 (DCR)

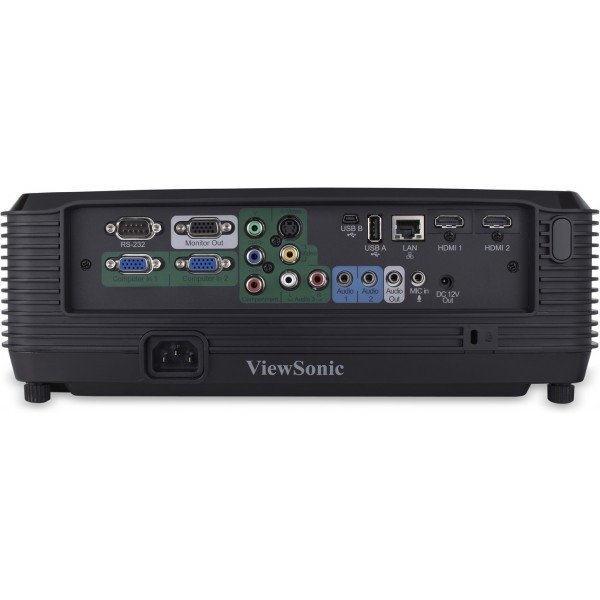

15,000:1 (DynamicEco Mode)Keystone Correction Auto vertical digital keystone correction (+/- 20º) Aspect Ratio 16:9 (native) Audio Speakers 10-watt (x2) Input Signal Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p Frequency Fh: 31-91KHz; Fv: 48-85Hz Compatibility PC VGA to 1920x1080 Mac Up to 1920x1080 (may require MAC adaptor) Connector RGB Input 15-pin mini D-sub (x2) RGB Output 15-pin mini D-sub Composite Video RCA jack S Video 4-pin mini-DIN Component Video RCA (x3), 15-pin mini D-sub (x2, shared with RGB) Digital HDMI (x2) Audio Input:3.5mm mini jack (x2), RCA (L/R)
Output:3.5mm mini jackControl RS-232 (DB-9) USB Type A(flash drive/ wireless adapter)
Mini B (USB display)Power 3.5 mm plug 12v/1A Network RJ-45 Power Voltage 100~240VAC (Auto Switching), 50/60Hz (universal) Consumption 450w (max) / <0.5w (standby mode) Operating Conditions Temperature 32ºF‚¬œ104ºF (0ºC‚¬œ40ºC) Humidity 10%‚¬œ90% (non-condensing) Dimensions Physical 333mm (width) x 122mm (height) x 263mm (depth) Weight Net 3.9 kg Regulations CB, UL/cUL, FCC-B (including ICES-004), CE, TUV-S
(Argentina), NOM, GOST-R, UKrSEPRO, PSB, C-Tick,
KC, CCC, CECP, WEEE, RoHS, SVHC, HygienicPackage Contents Pro8520HD projector, power cable, VGA cable, HDMI cable, laser remote control with batteries, lens cap,
Quick Start Guide, ViewSonic Wizard DVD (with User Guide), soft carrying caseAll eligible company warranty and service support is being provided on ViewSonic Pro8520 Full HD Projector
